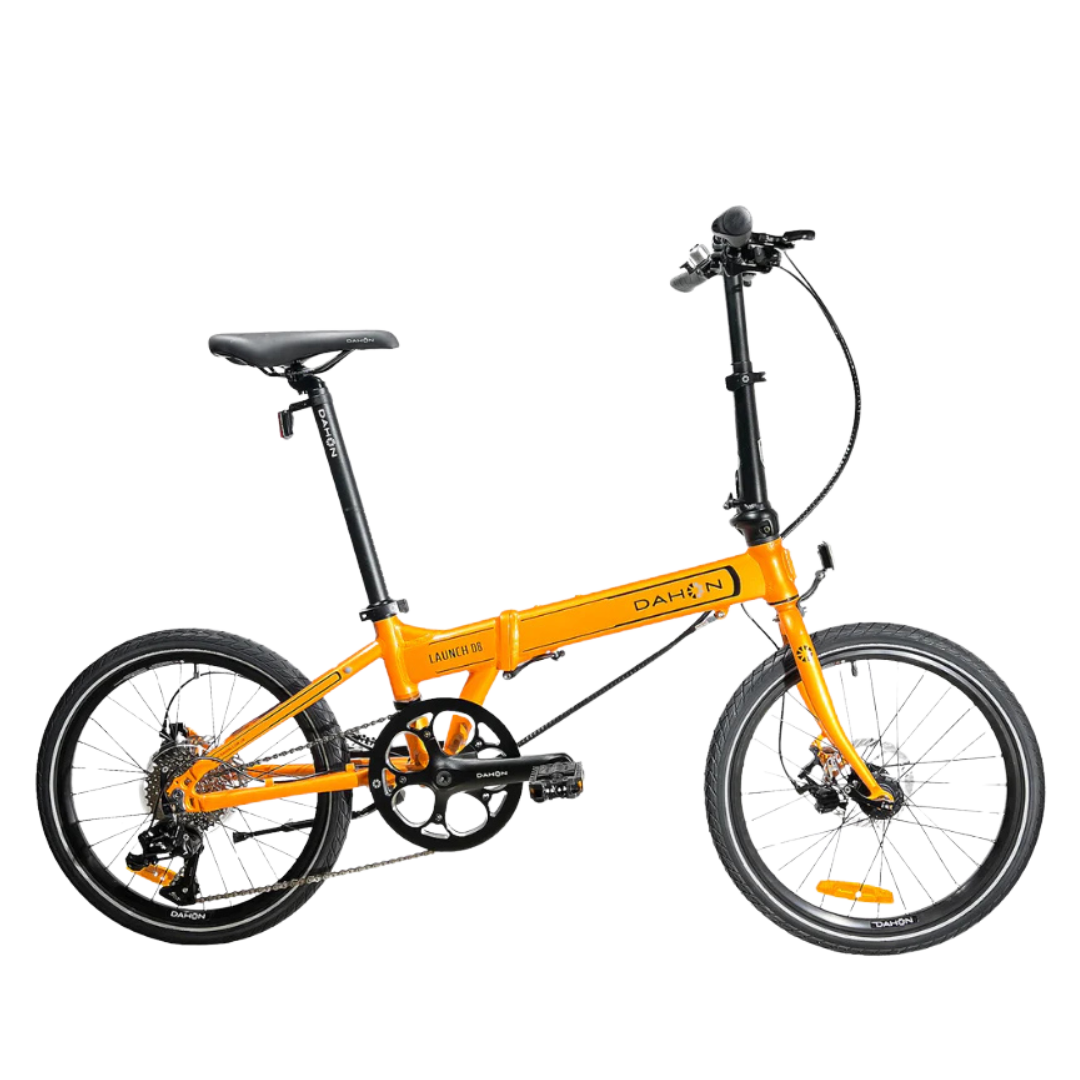

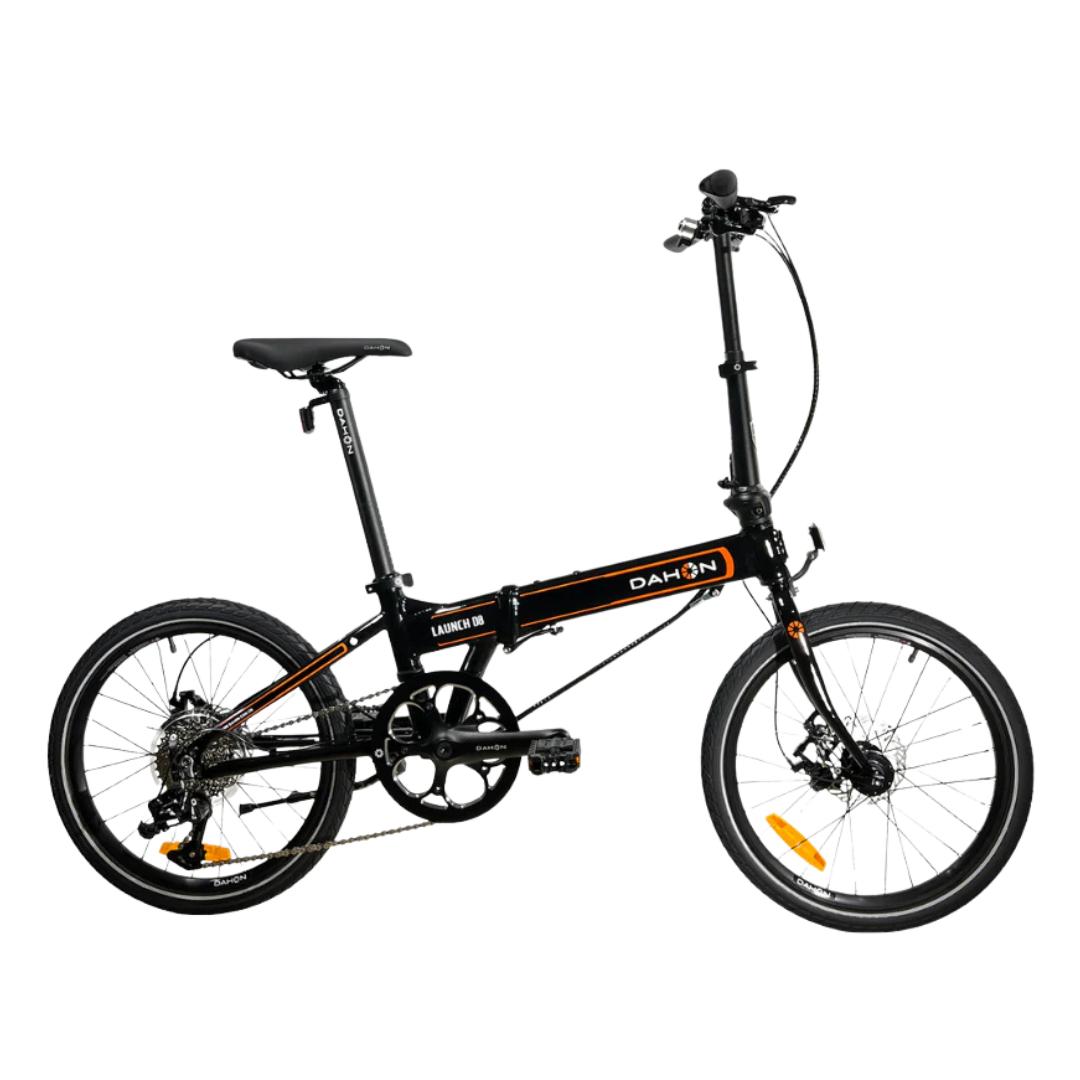

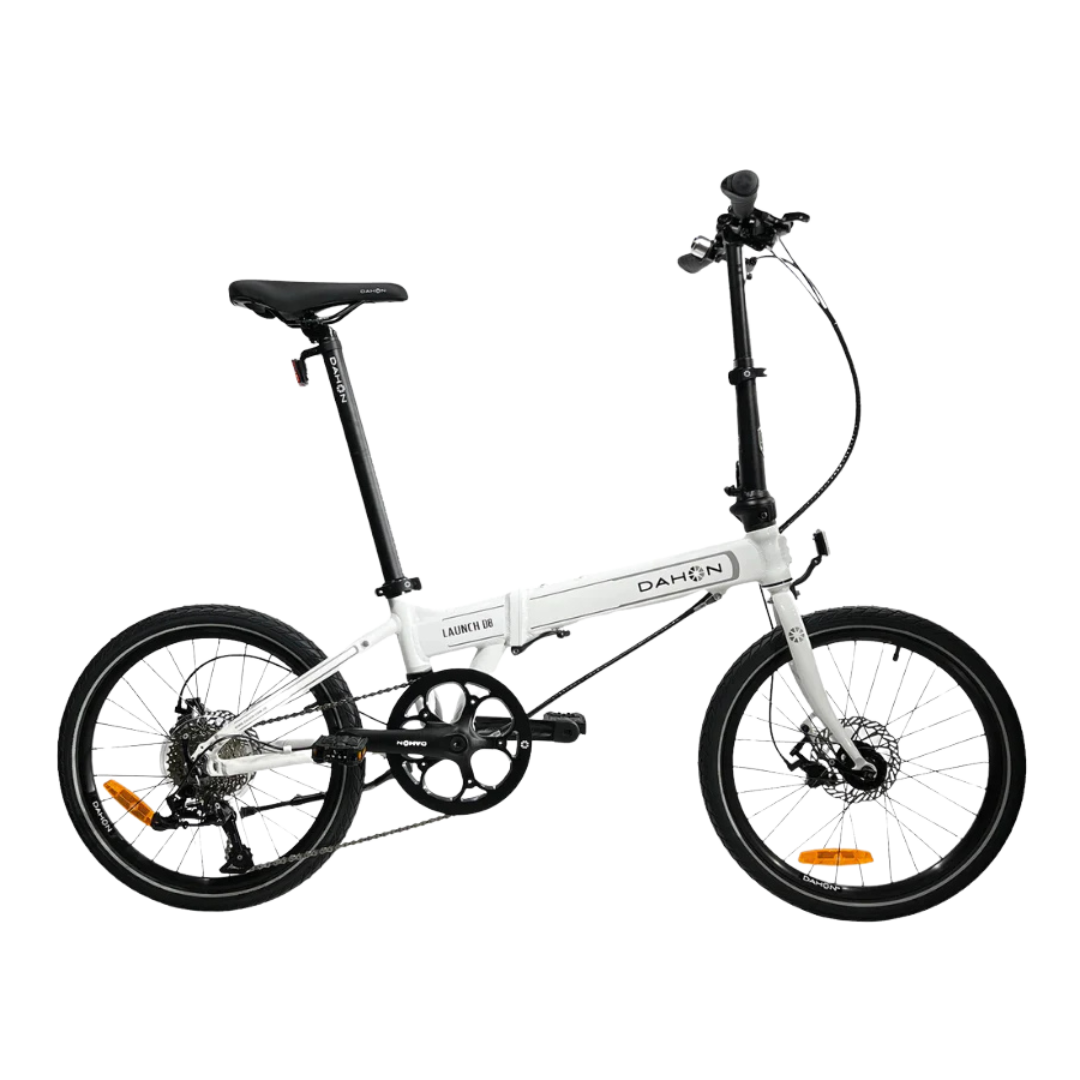

Get ready for takeoff with the Dahon Launch D8—featuring the revolutionary Jaws hinge, the latest innovation in Dahon’s LockJaw folding technology. This advanced hinge system seamlessly locks the lightweight hydroformed aluminum frame into place for unmatched stability. With 8-speed gearing and Dahon custom tires, the Launch D8 delivers a smooth, powerful ride. Enhanced by the Deltech cable system, it boosts frame stiffness and supports riders up to 231 lbs (105 kg), making it a top choice for performance and portability.
Specifications:
| Model Number |
KBA083 / Launch D8 |
|
| Weight |
27lbs (12.3kg) |

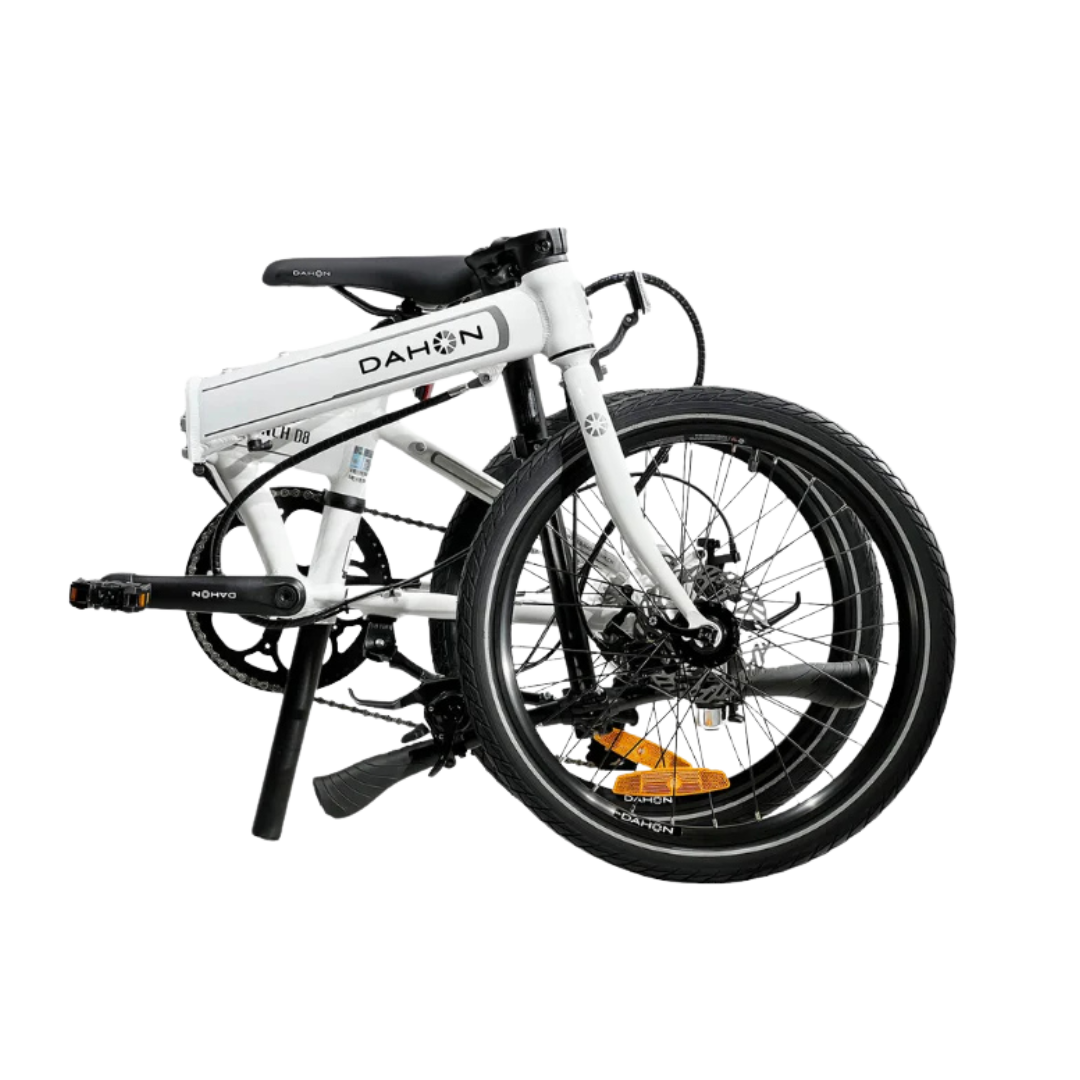

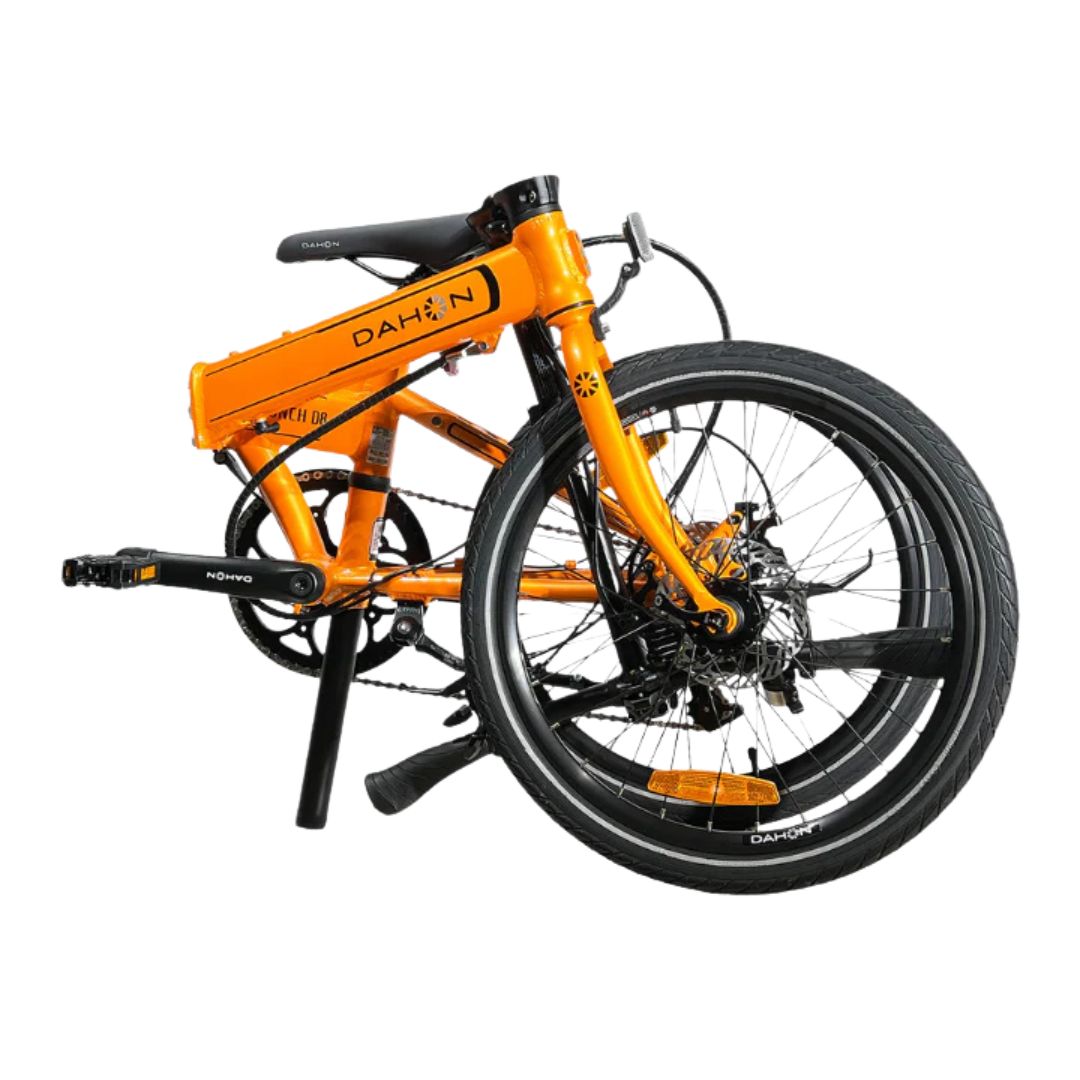

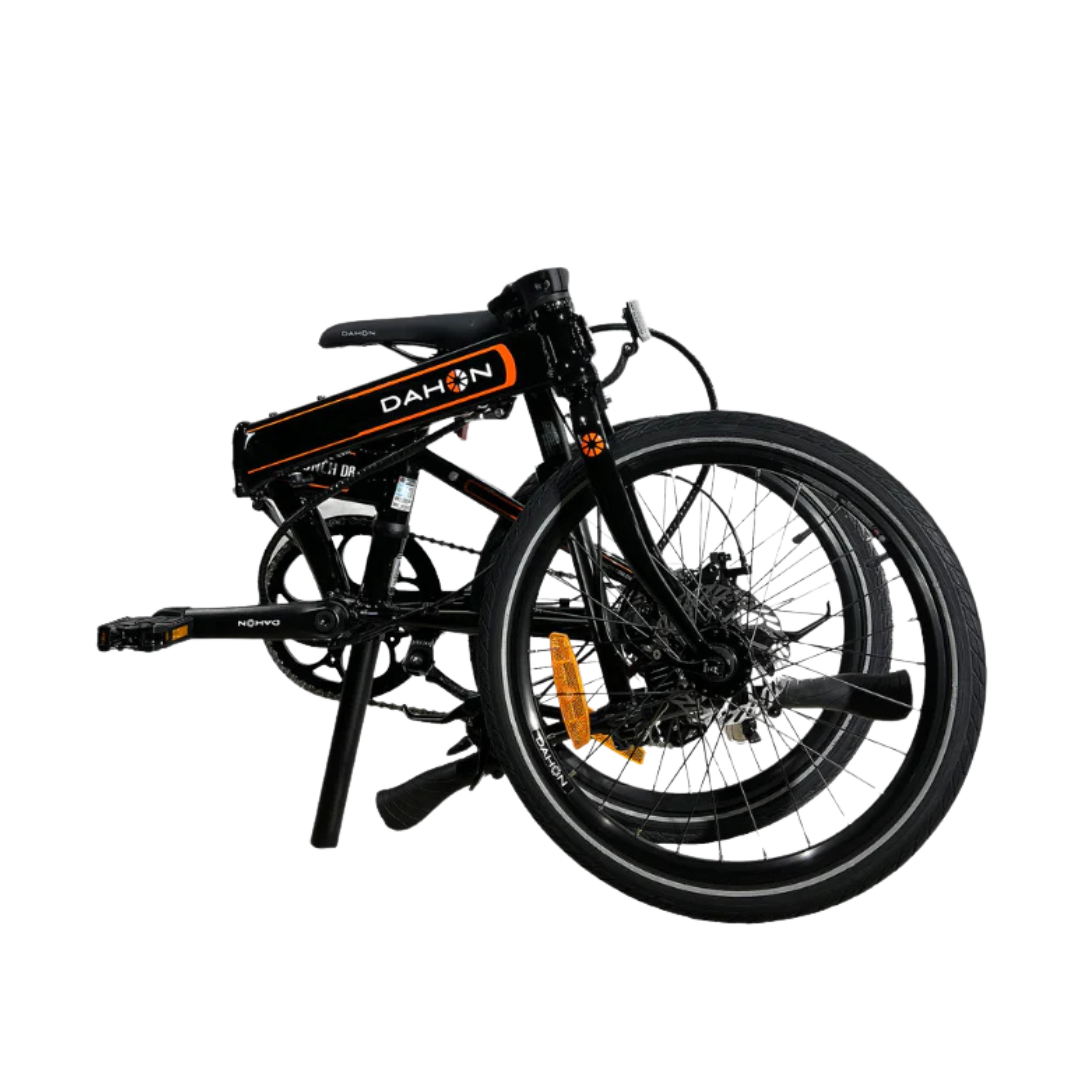

| Folded Size |
25x15x32in (64x38x82cm) |

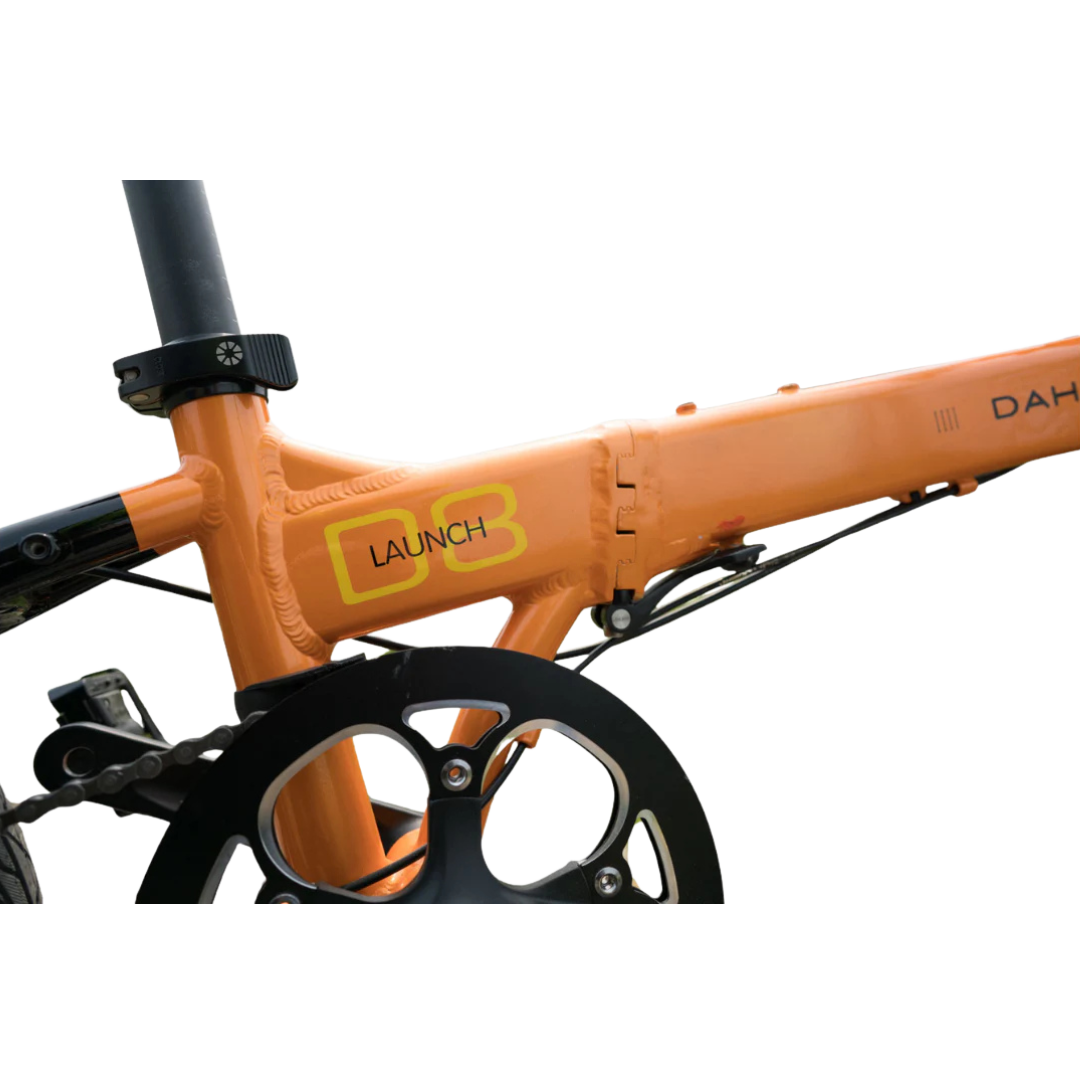

| Frame |
Dalloy Aluminum Sonus Tubeset, Lattice Forged Jaws Hinge |
| Fork |
Smooth Riding and Stable Hi-Ten Steel Blades and Steerer |
| Handlepost |
Forged Aluminum Radius Telescope w/ Fusion Technology, Adjustable |
| Rims |
20" Lightweight Aluminum Double Wall Disc |
| Front Hub |
DAHON Custom 100mm 28 Hole Disc |
| Rear Hub |
DAHON Custom 135mm 28 Hole DIsc 8 spd cassette |
| Spokes |
14g Stainless Steel |
| Tires |
DAHON Custom 20"*1.75" |
| Cranks |
Forged Aluminum 53 Tooth Chainring w/ Single CNC Guard |
| Bottom Bracket |
Sealed Bearing |
| Chain |
YNB |
| Cassette |
Sunrace 8 Speed, 11-32T |
| Front Derailleur |
n/a |

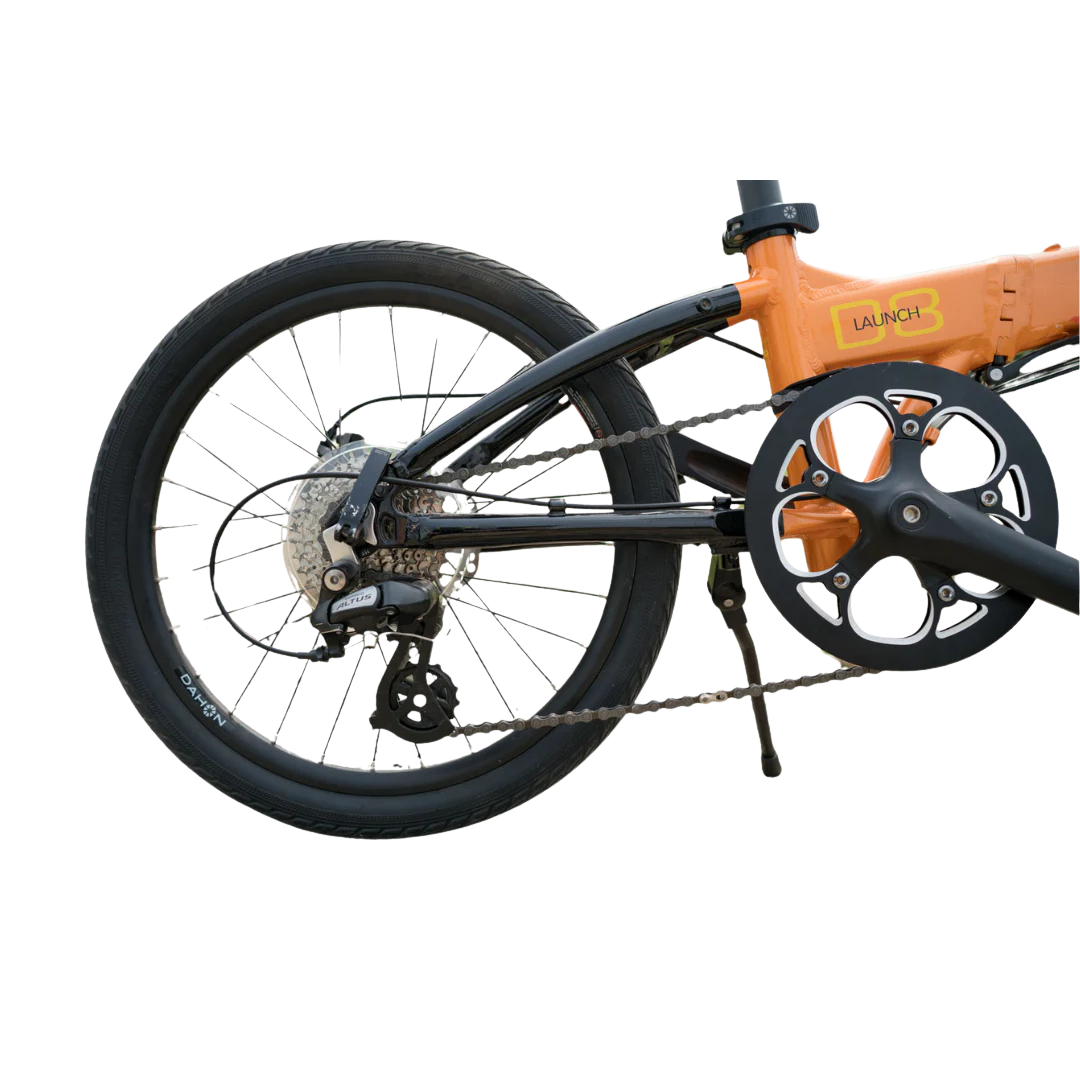

| Rear Derailleur |
DAHON Custom 8-Speed Rear Derailleur |
| Shifters |
DAHON Custom 8-Speed Trigger Shifter |

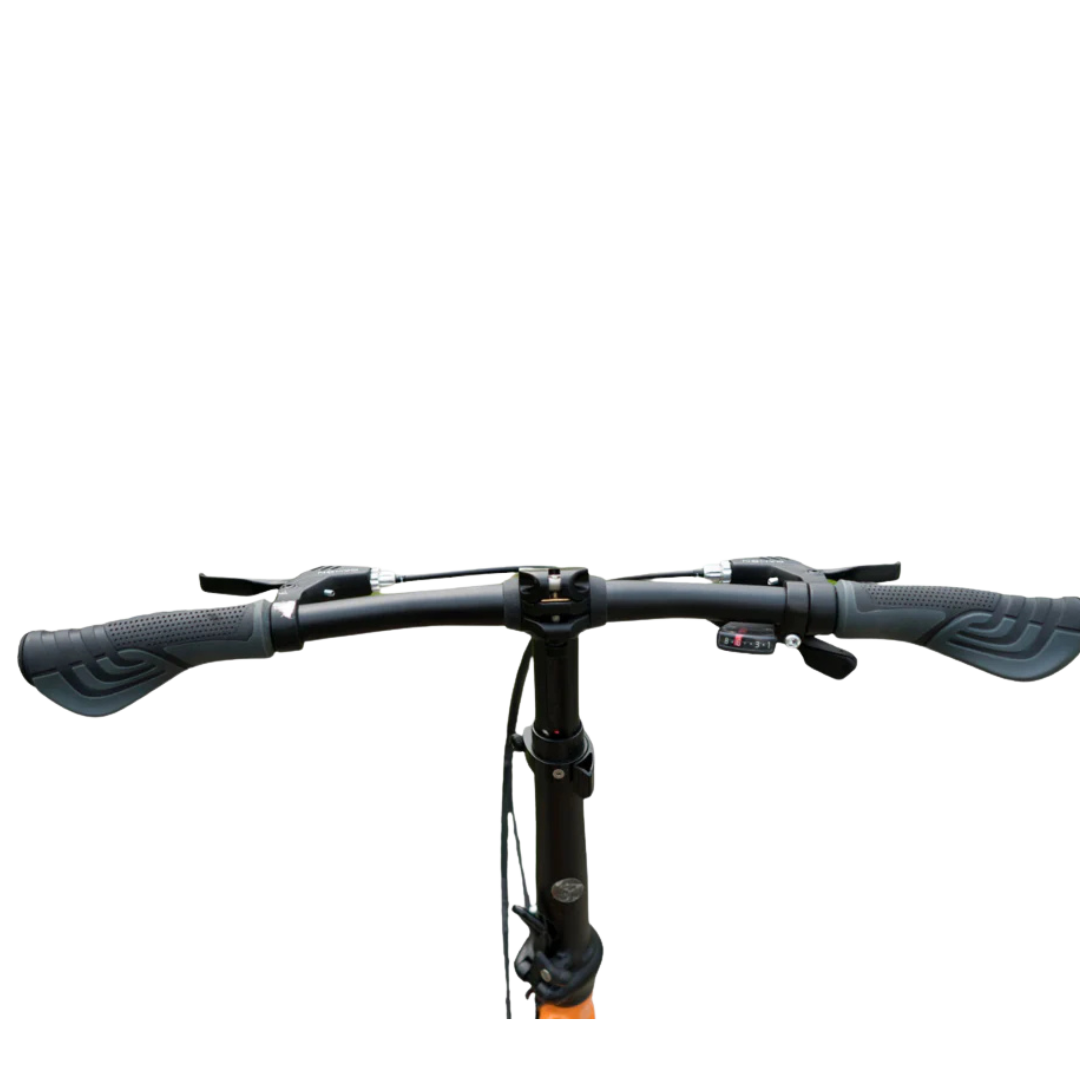

| Handlebar |
6061 Double Butted Aluminum Flat Bar 580mm Wide |
| Grips |
DAHON Ergo Comfort |
| Headset |
Fusion, Zero Stack, Cartridge Bearing |
| Brakes |
TEKTRO Mechanical Disc |
| Brake Levers |
DAHON Custom 2.5 Finger Aluminum Lever |
| Saddle |
DAHON Ergo Comfort |
| Seatpost |
DAHON Custom 6061 Aluminum, 33.9mm x 580mm |
| Pedals |
DAHON Foldable, PC Body, Aluminum Cage |
| Kickstand |
Lightweight Aluminum |
